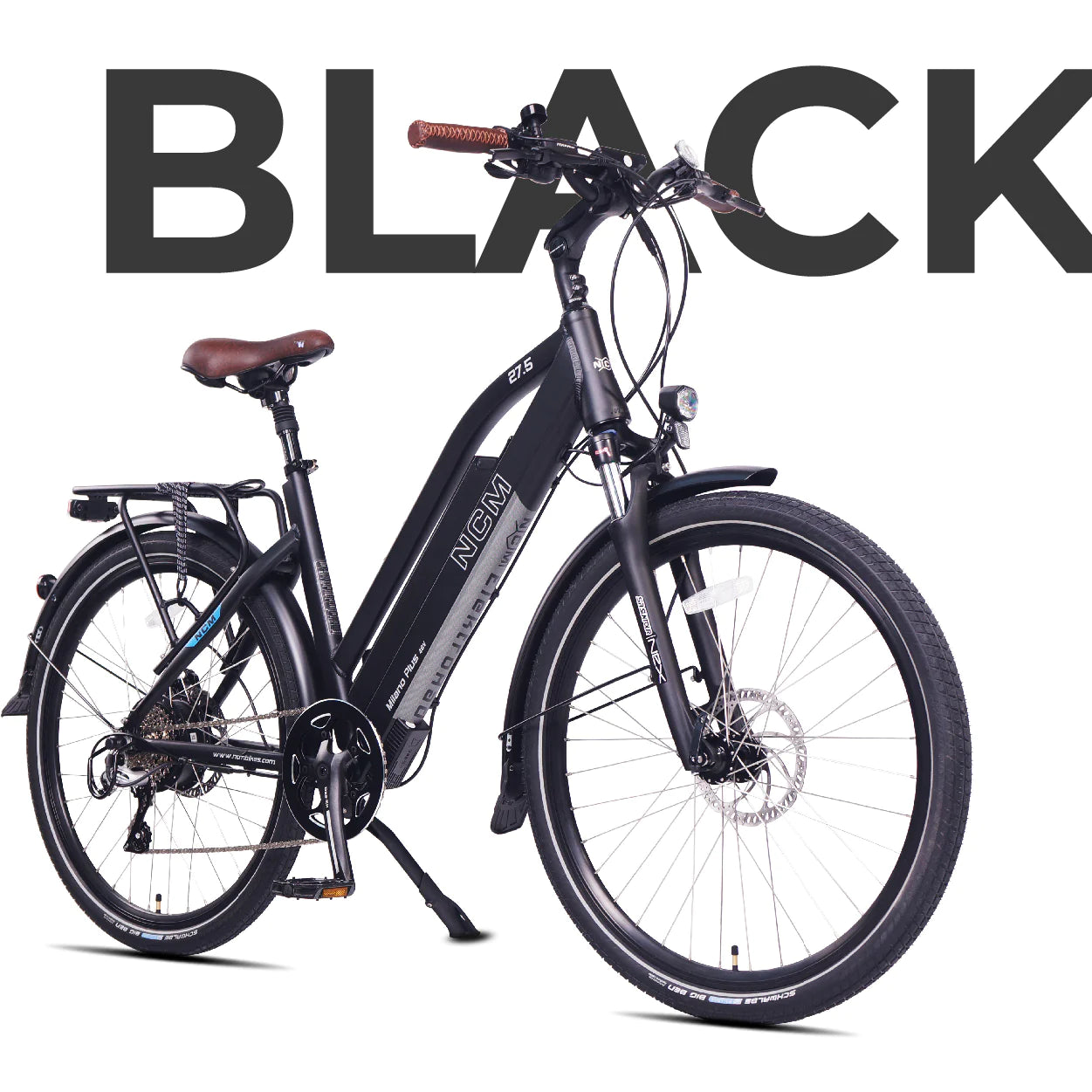

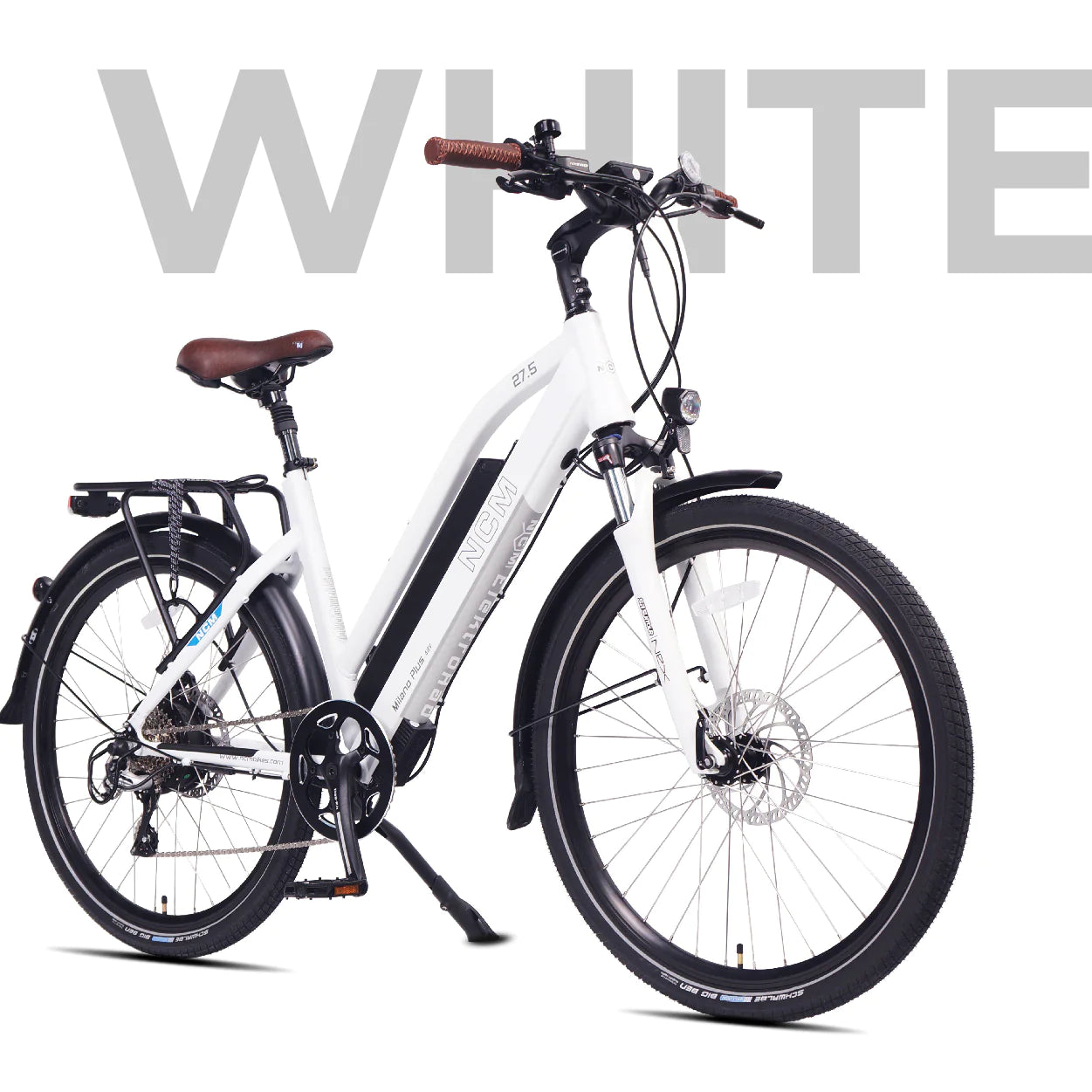

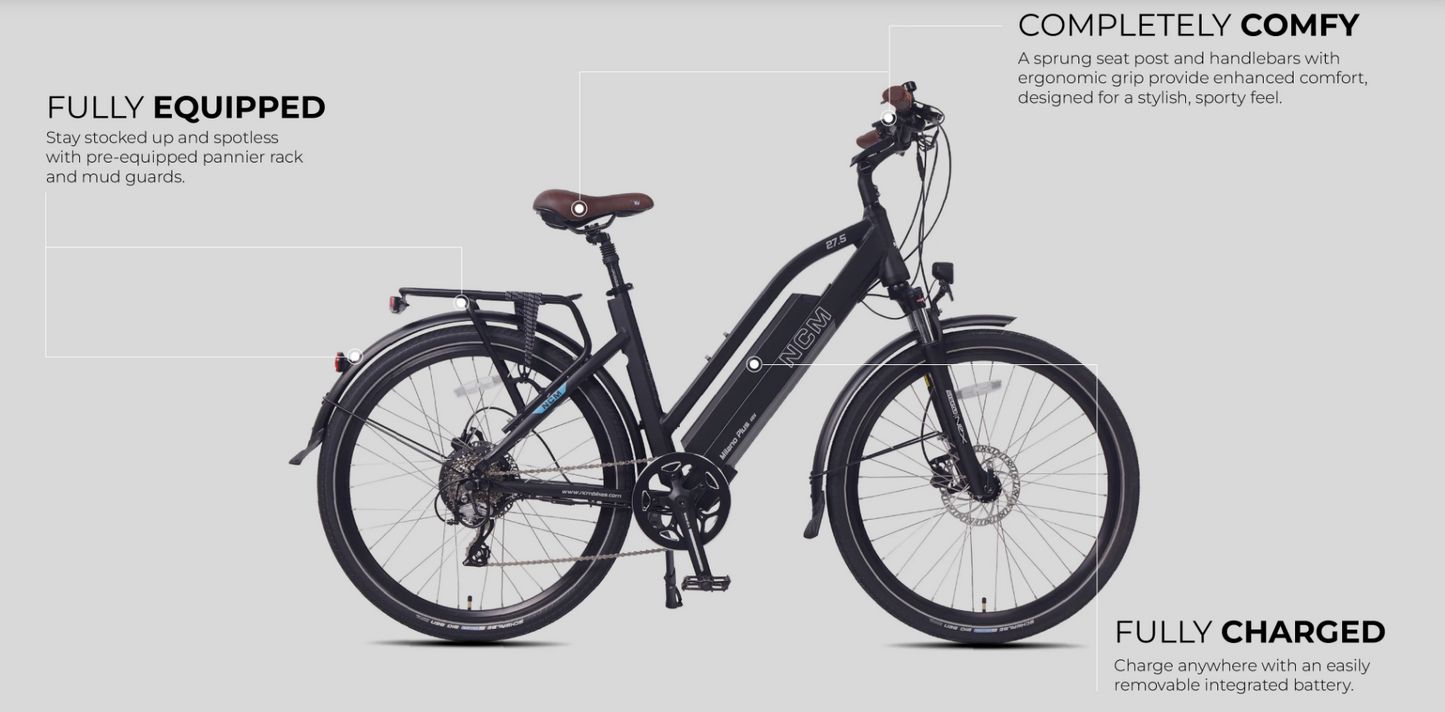

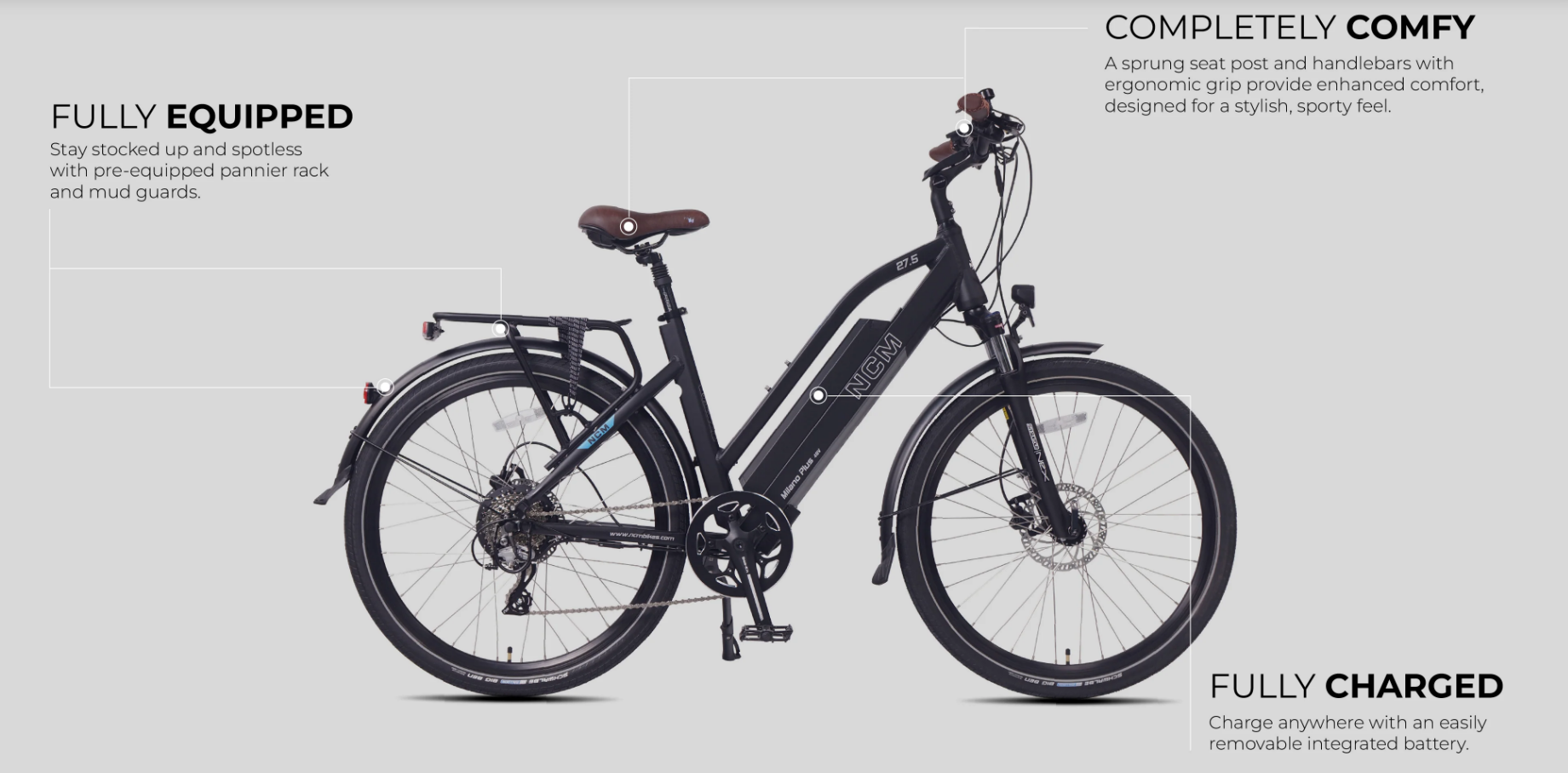

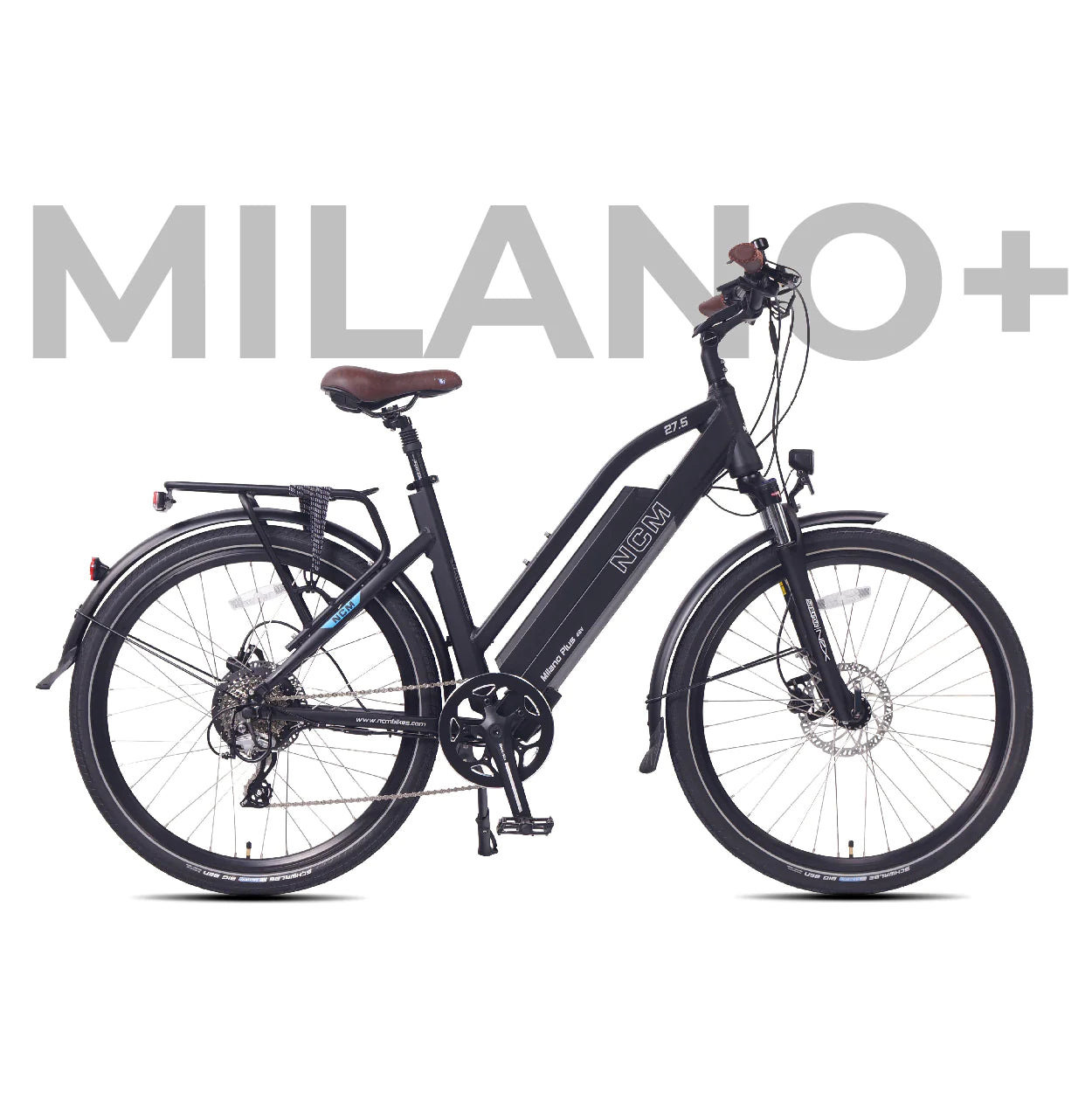

NCM Milano Plus

Balancing accessibility with superior specifications, the NCM Milano Plus is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an ebike with the range and the integrity to help them do it.

BIKE COMPONENTS

Frame: Alu. 6061, 26"*17.3 inches / Alu. 6061, 27.5"*18.9 inches

Suspension Fork: Suntour, NEX-HLO

Brake: Hydraulic Disc Brakes

Freewheel: LY, 8 Speed, 11-32T

Tire: Schwalbe, Marathon/Big Ben

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R:SL-M315-8R, 8 Speed

Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4816, 48V 16AH, 768WH, with an USB Port

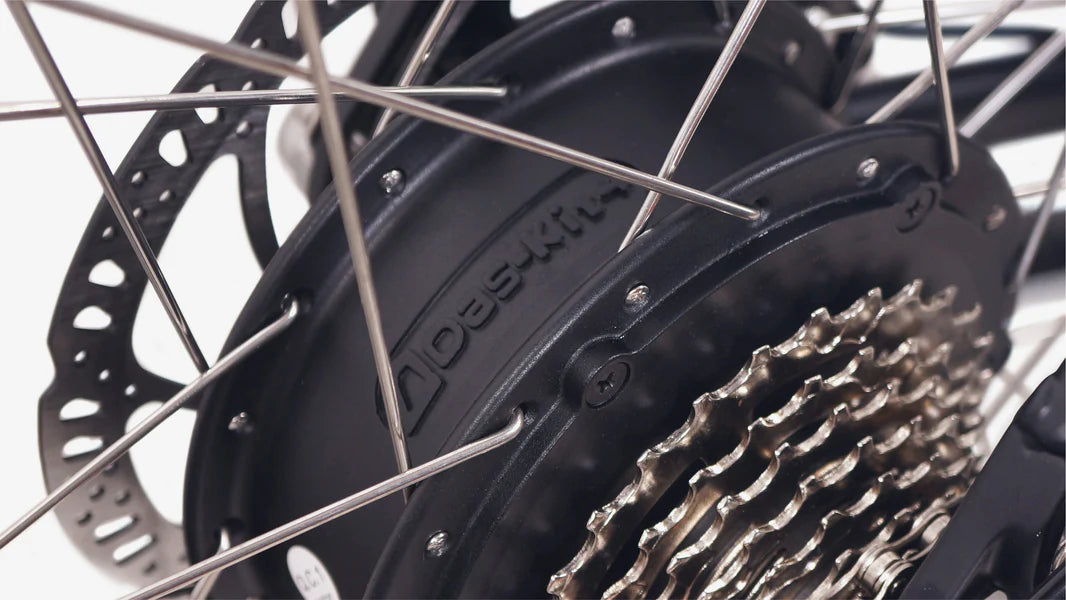

Motor: Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H

Controller: Das-Kit, CT-i5, 48V18A

Charger: Das-Kit, 48V3A

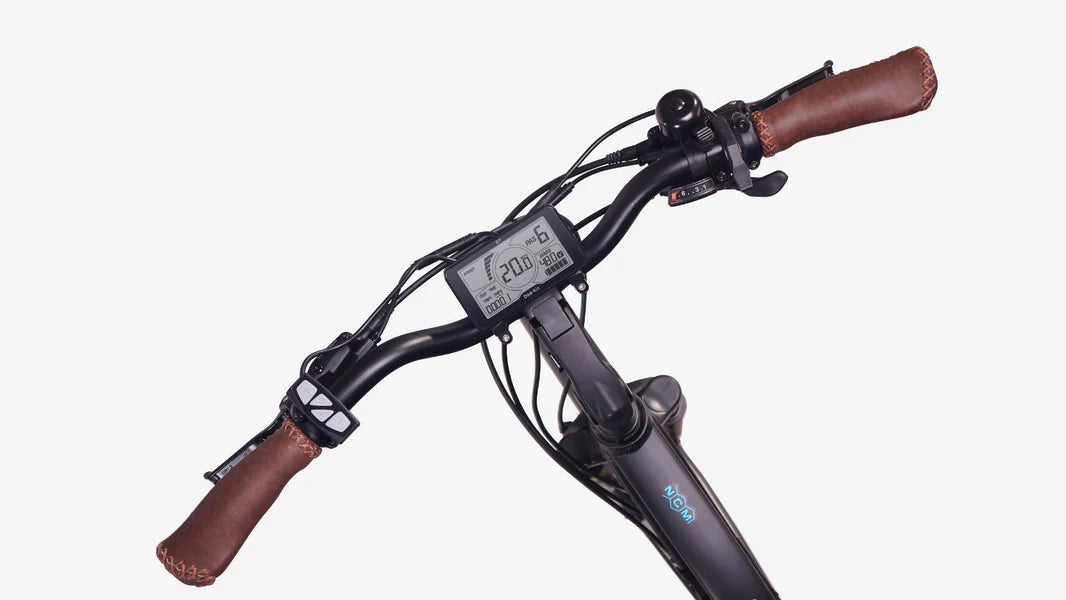

Display: Das-Kit, C7

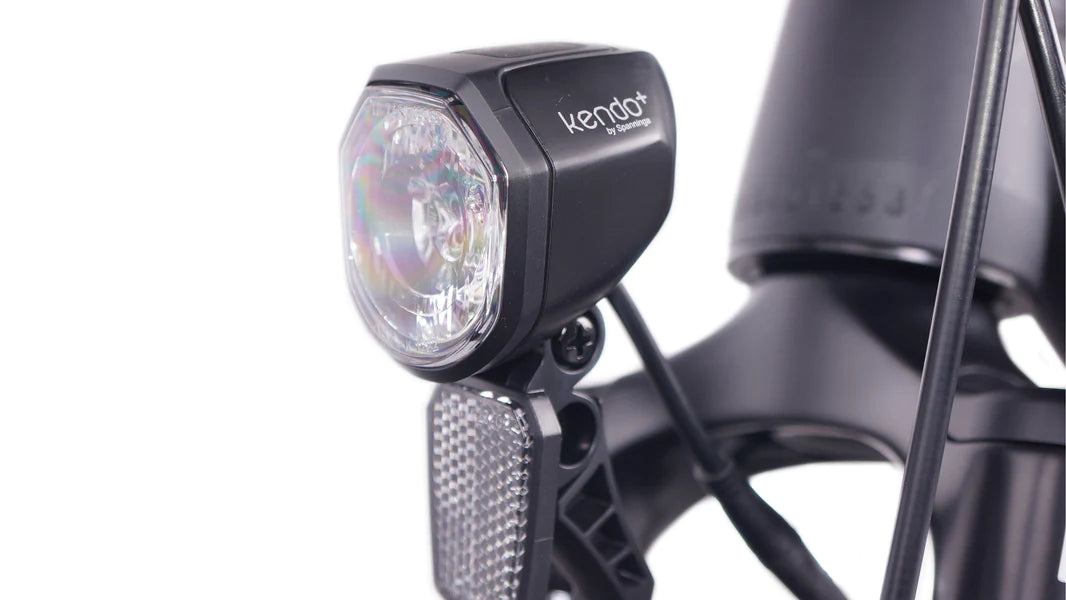

Front Light: Kendo, 48V, 30 Lux

Rear Light: DR009, AAA*2

Weight

Net Weight (with battery): 27.0kg

Battery Weight: 4.1kg

Max Load (driver+bike): 140.0kg
