NCM Milano

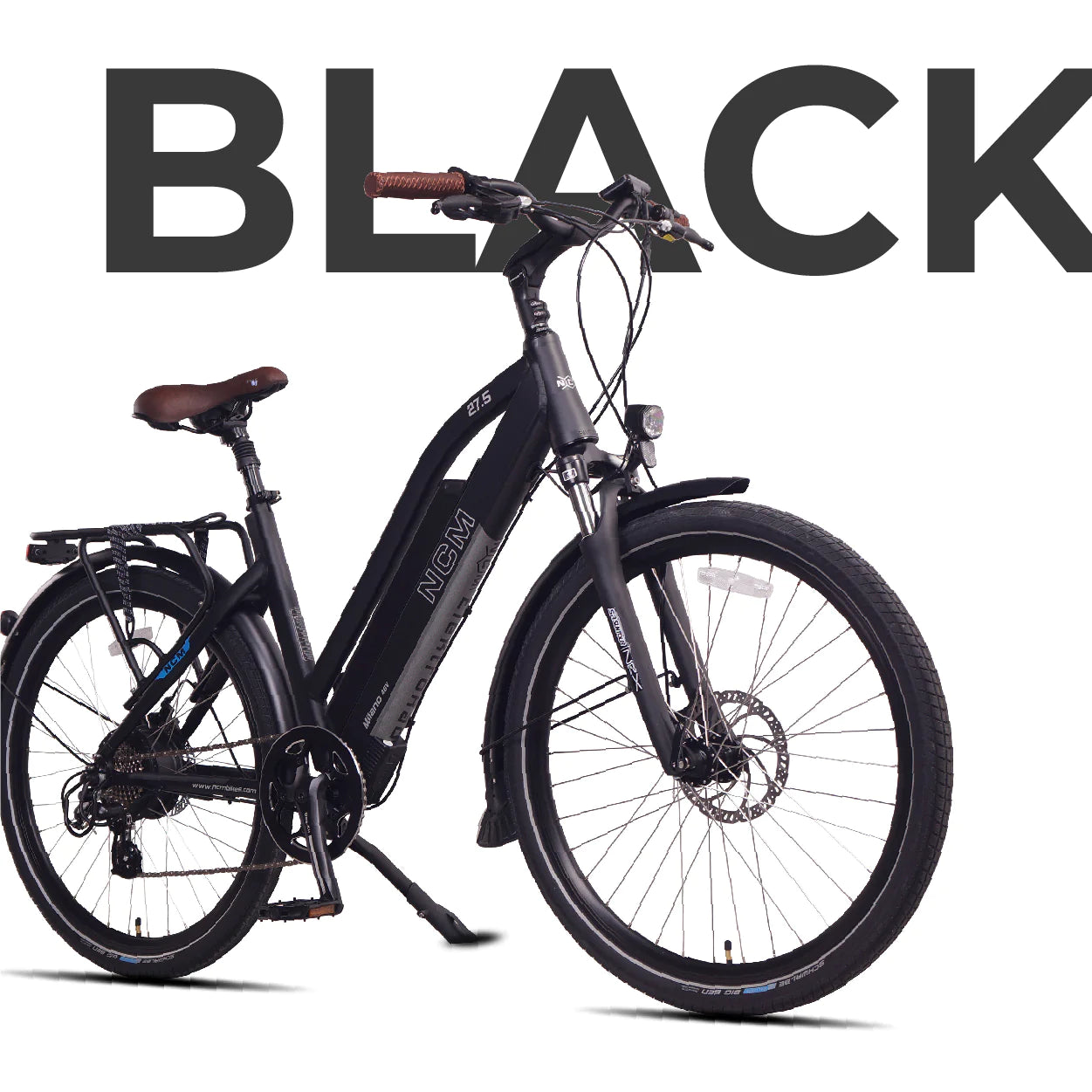

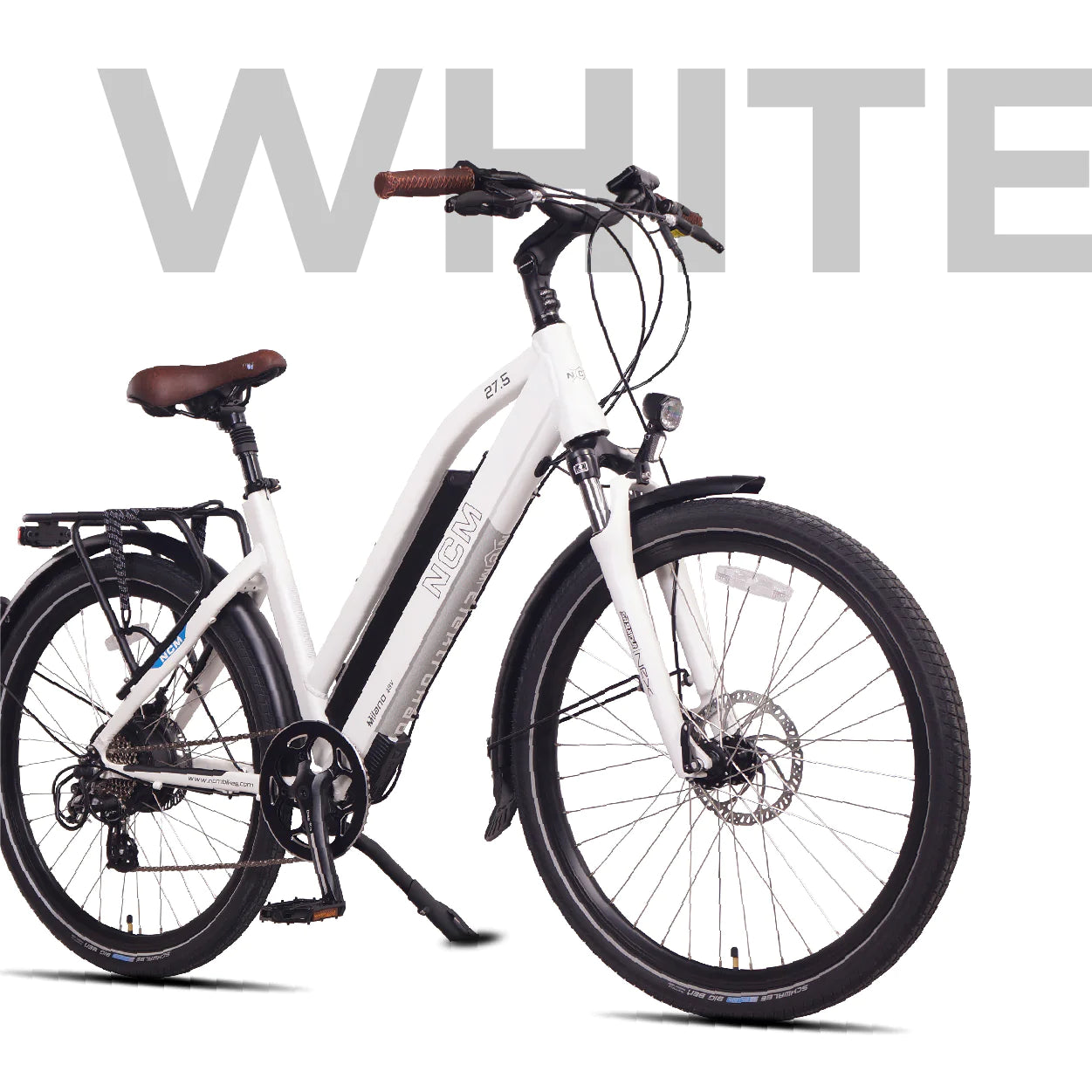

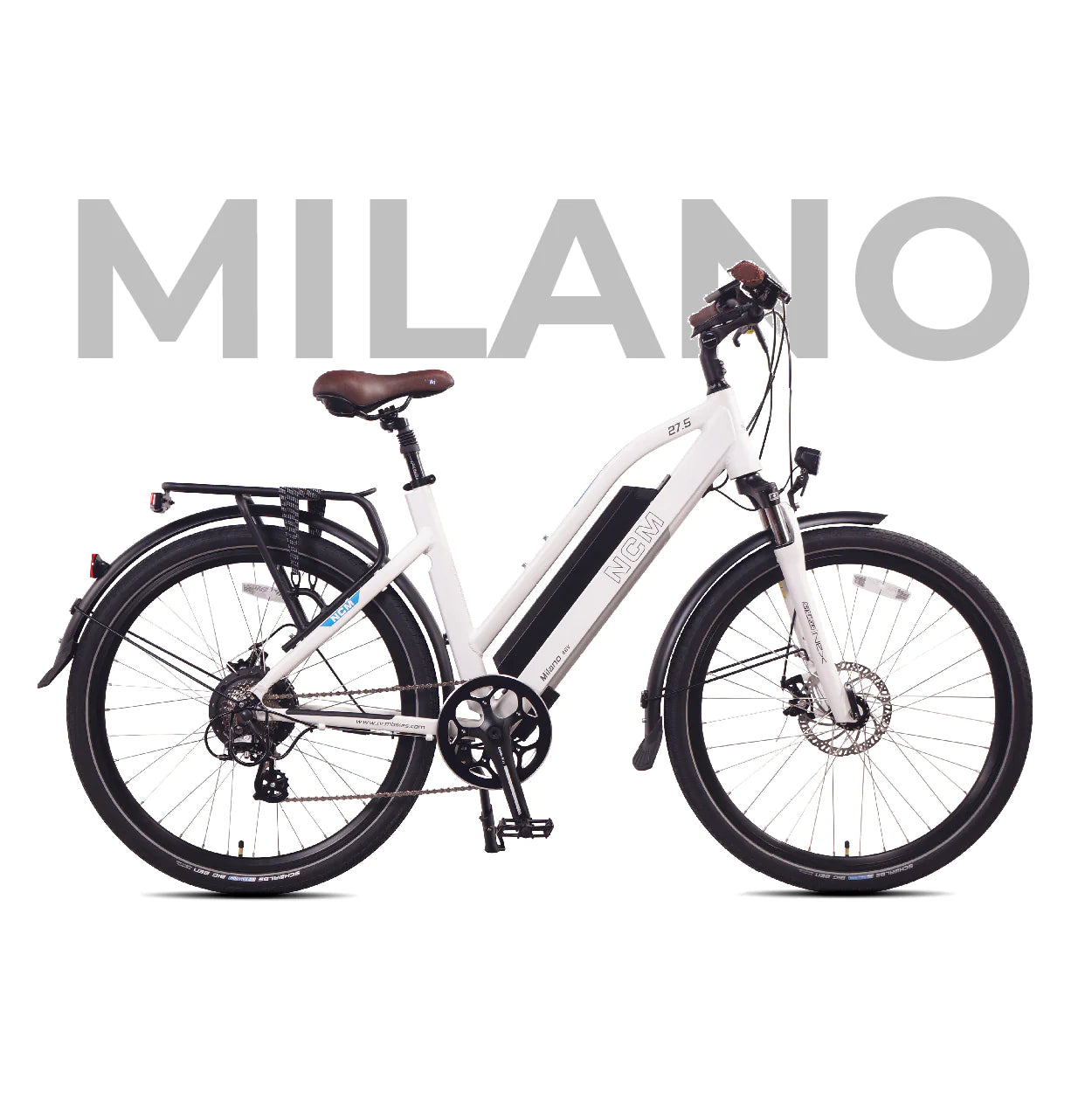

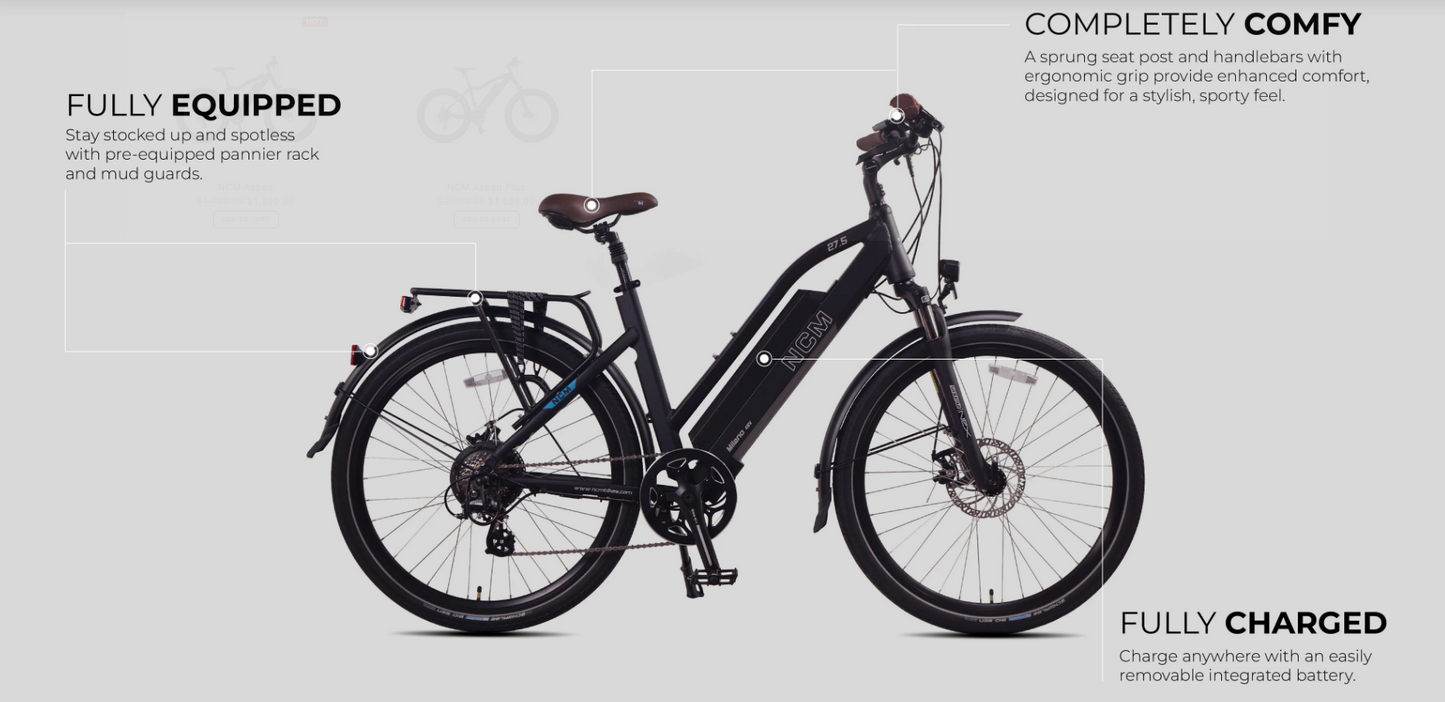

Inspired by the fashion capital of Europe, the NCM Milano is designed to ride as elegant as it looks. This e-bike is designed with a sturdy aluminum frame, adjustable handlebar/stem setup, and sprung seat post for improved comfort as you ride. The step-through design ensures the bike is easy and comfortable to mount while providing additional protection to the battery.

BIKE COMPONENTS

Frame: Alu. 6061, 27.5"*18.9 inches

Suspension Fork: Suntour, NEX

Brake: Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Schwalbe, Big Ben

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R: SL-M315-7R, 7 Speed

Derailleur: Shimano, Altus RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4813, 48V 13AH, 624WH

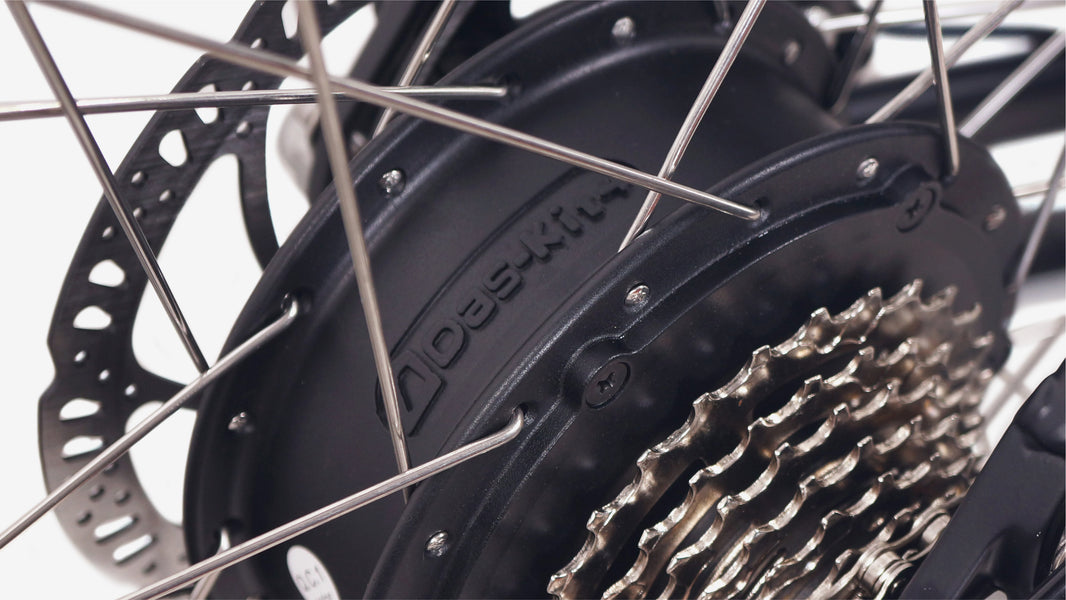

Motor: Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H

Controller: Das-Kit, CT5-I5, 48V 18A

Charger: Das-Kit, 48V2A

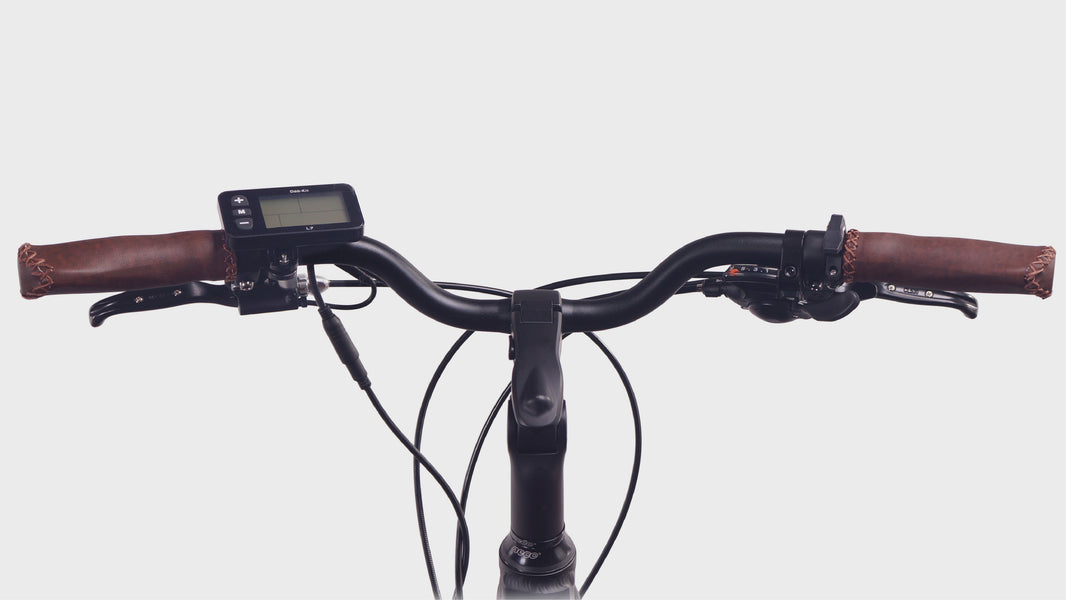

Display: Das-Kit, L7

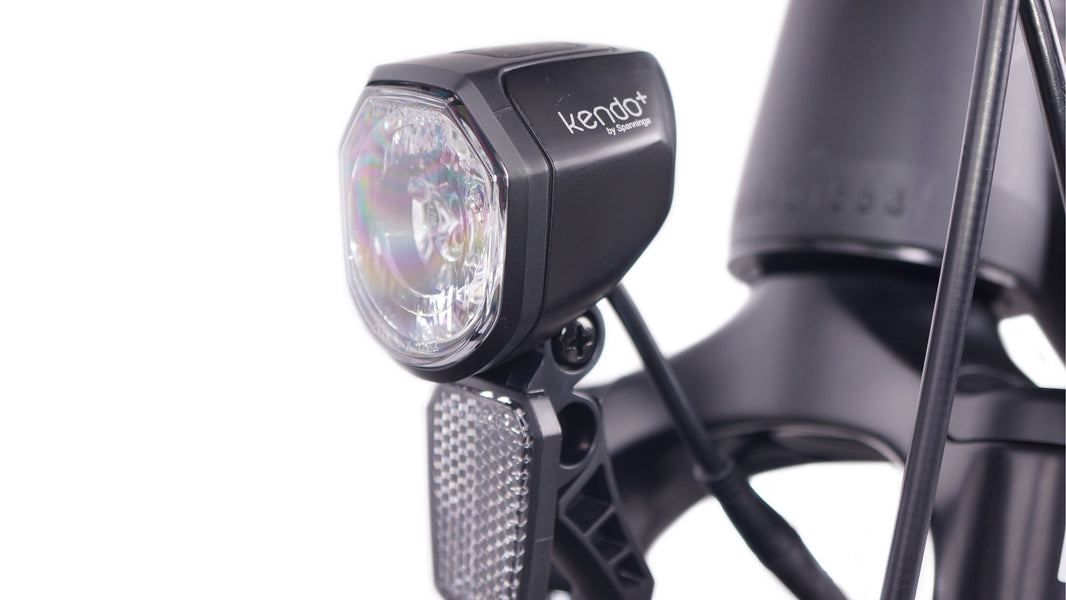

Front Light: Kendo, 48V, 30 Lux

Rear Light: Solo, AAA*2

WEIGHT

Net Weight (with battery): 27.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg
